Nozzle Check Valve
IG-KV |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||
|
- Short Face to Face Length
- Low Pressure Loss - Quick Non-Slam Closure - Metal to Metal Sealing - Low Weigth - Maintenance Free - Cost-Efficient DN 50 (2") - DN 400 (16") up to PN 400 (ANSI 2500) |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||
|
The type IG-KV is a Wafer Check Valve suitable for all liquid and gaseous fluids.
Extremeley quick closure without slamming protect the equipment (pumps, pipes ...) and extends maintenance cycles. Industrial Goods GmbH supplies this very cost-efficent valve in acc. to any known Standard: EN, BS, ANSI, MSS..... and try to achieve customer's requirements and wishes or find solutions for them. |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||

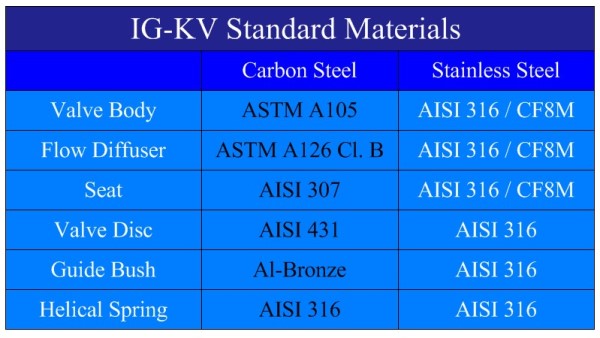

| On request Industrial Goods GmbH supplies further to our standard all conventional materials in valve buisness: Hastelloy, Duplex, Superduplex, Stelite, Al-Bronzen, Hastelloy, Inconel........ DN 50 - DN 200 up to PN 100 direct deliverable! |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||
|

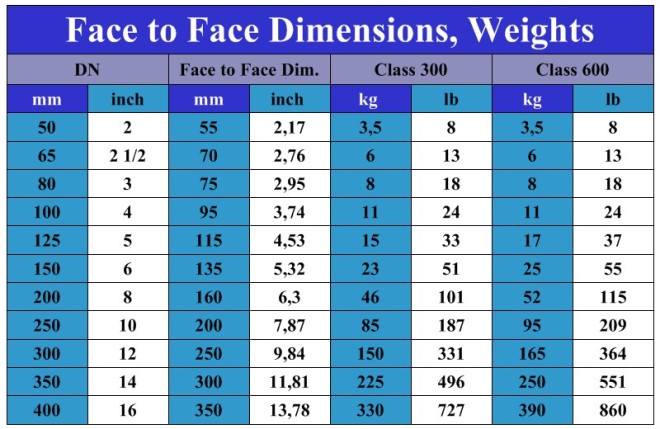

Weights and Dimensions for higher pressure classes on request
|
|||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||
